LE PD X

Dual Sol. Proportional Amplifier, either coil A or coil B activated, DIN rail

$445.00 USD
LE PD X

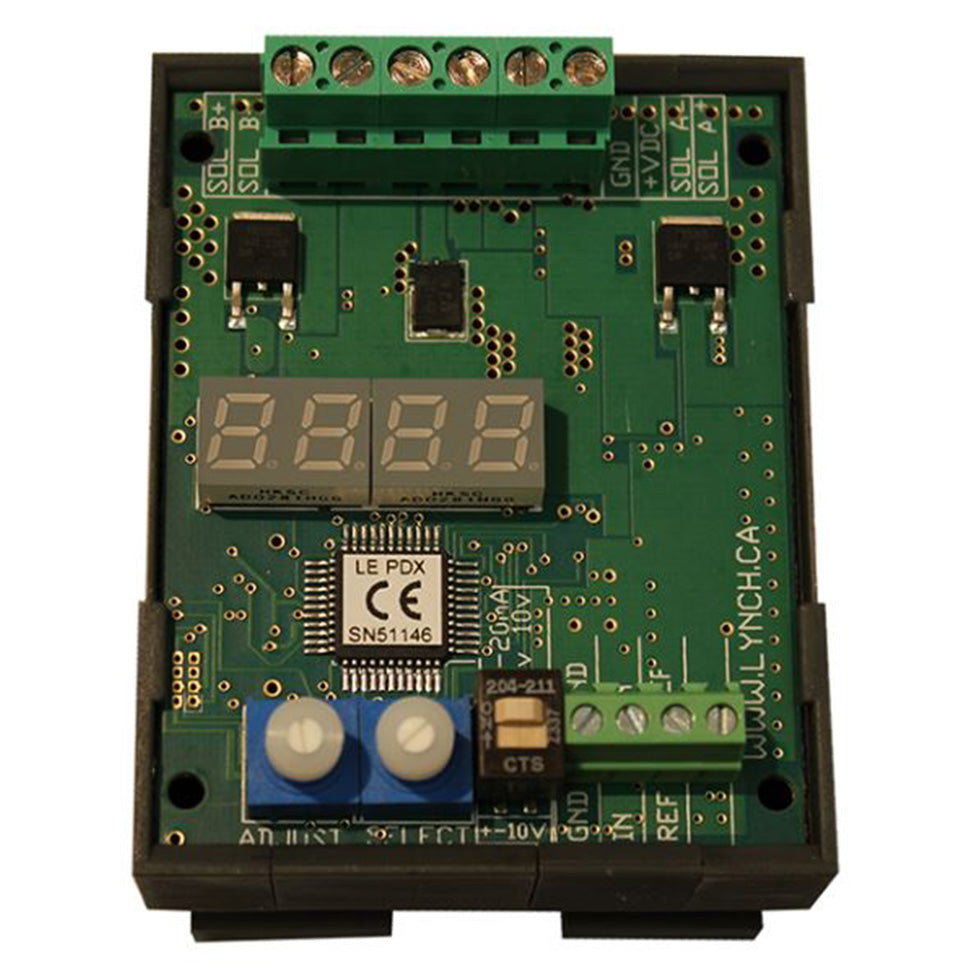

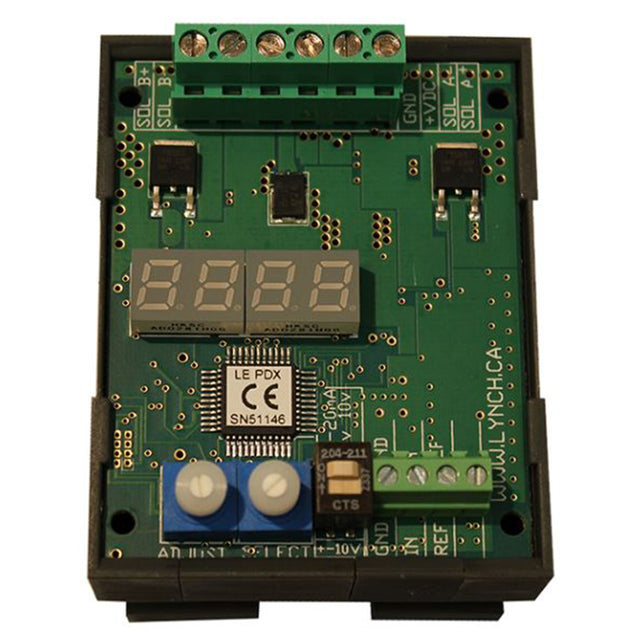

A dual proportional amplifier mounted in a DIN rail housing.

The LE PD X supplies a solenoid with current proportional to the input signal from a potentiometer, joystick, PLC, or other control system. The dual driver is used with bi-directional valves, either Coil A or Coil B activated. Mountable on a DIN Rail, typically placed in an Electrical Cabinet, and fits all DIN mounting standards.

FEATURES AND BENEFITS
  • Microcontroller design.
  • Independent adjustments (Incl. ramp up and ramp down).
  • 4-digit extra bright seven-segment LED display.
  • Large, easy-to-use adjustments and readout.
  • Display and adjust actual values (current & voltage).
  • Wide range of supply voltage.
  • User selectable input type through menu setup (ex: 0 to 5V, 0 to 10V, 4 to 20mA, -10 to +10V).
  • Wide ramp time range (0 to 99.5 sec).
  • Simple control with analog input, locally supplied reference voltage.
  • Energy-efficient PWM circuit, no heat sink required.
  • Electronic limiting circuit/ short circuit proof.
  • Reverse polarity, command input protection.
  • The load can be connected and disconnected live.
  • Easy troubleshooting.

*If purchasing more than 10 units, please contact sales@lynch.ca

 LE PD X STANDARD SPECIFICATIONS

Operating voltage:
Maximum output current:
Input Signal:
Maximum ramp time:
PWM/Dither Frequency:
Linearity:
Operating Temperature:
Dimensions:

 9 to 36 VDC
3.00 Amps
5V, 10V, 4 to 20mA
99.5 Sec
40-450Hz
1%
-40 to +80 Celsius
59mm x 76 mm x 19mm




0.4 lb
