LE PN X

Dual Sol. Proportional Amplifier, either coil A or coil B activated, NEMA 4X with cable glands

$445.00 USD
LE PN X

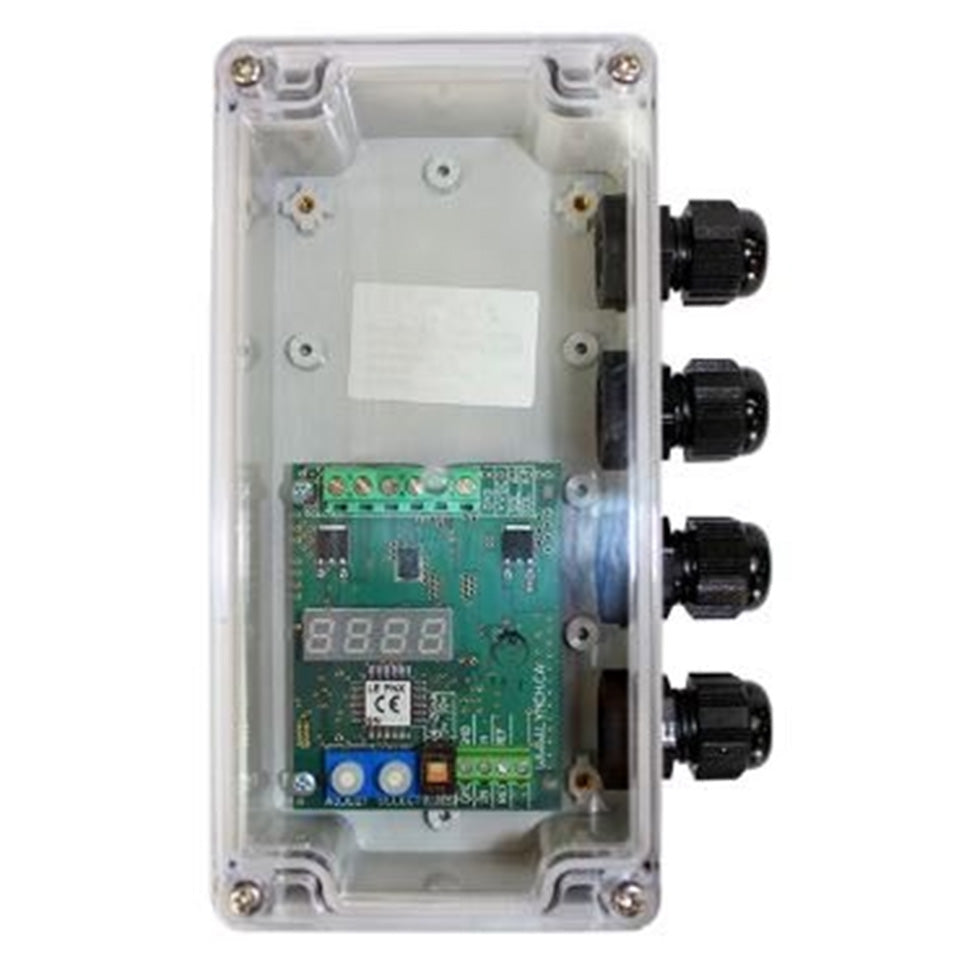

A dual amplifier enclosed in a NEMA 4X enclosure with a clear lid.

The LE PN X supplies a solenoid with current proportional to the input signal from a potentiometer, joystick, PLC, or other control system. The dual solenoid proportional valve driver is used with bi-directional valves, either Coil A or Coil B activated, in a weather-tight NEMA 4X enclosure with mounting holes. The enclosure has a clear lid to view the driver operation.


FEATURES AND BENEFITS

  • Microcontroller design.
  • Independent adjustments (Incl. ramp up and ramp down).
  • 4-digit extra bright seven-segment LED display.
  • Large, easy-to-use adjustments and readout.
  • Display and adjust actual values (current & voltage).
  • Wide range of supply voltage.
  • User selectable input type through menu setup (ex: 0 to 5V, 0 to 10V, 4 to 20mA, -10 to +10V).
  • Wide ramp time range (0 to 99.5 sec).
  • Simple control with analog input, locally supplied reference voltage.
  • Energy-efficient PWM circuit, no heat sink required.
  • Electronic limiting circuit/ short circuit proof.
  • Reverse polarity, command input protection.
  • The load can be connected and disconnected live.
  • Easy troubleshooting.


    *If purchasing more than 10 units, please contact sales@lynch.ca

     LE PN X STANDARD SPECIFICATIONS

    Operating voltage:
    Maximum output current:
    Input Signal:
    Maximum ramp time:
    PWM/Dither Frequency:
    Linearity:
    Operating Temperature:
    Protection Grade:
    Dimensions:

    		 9 to 36 VDC
    3.00 Amps
    5V, 10V, 4 to 20mA, -10 to +10V
    99.5 Sec
    40-450Hz
    1%
    -40 to +80 Celsius
    NEMA 4X
    160mm x 80mm x 56mm




    0.63 lb
