LE PT X

Dual Sol. Proportional Amplifier, either coil A or coil B activated, fire-retardant epoxy resin pott

$445.00 USD

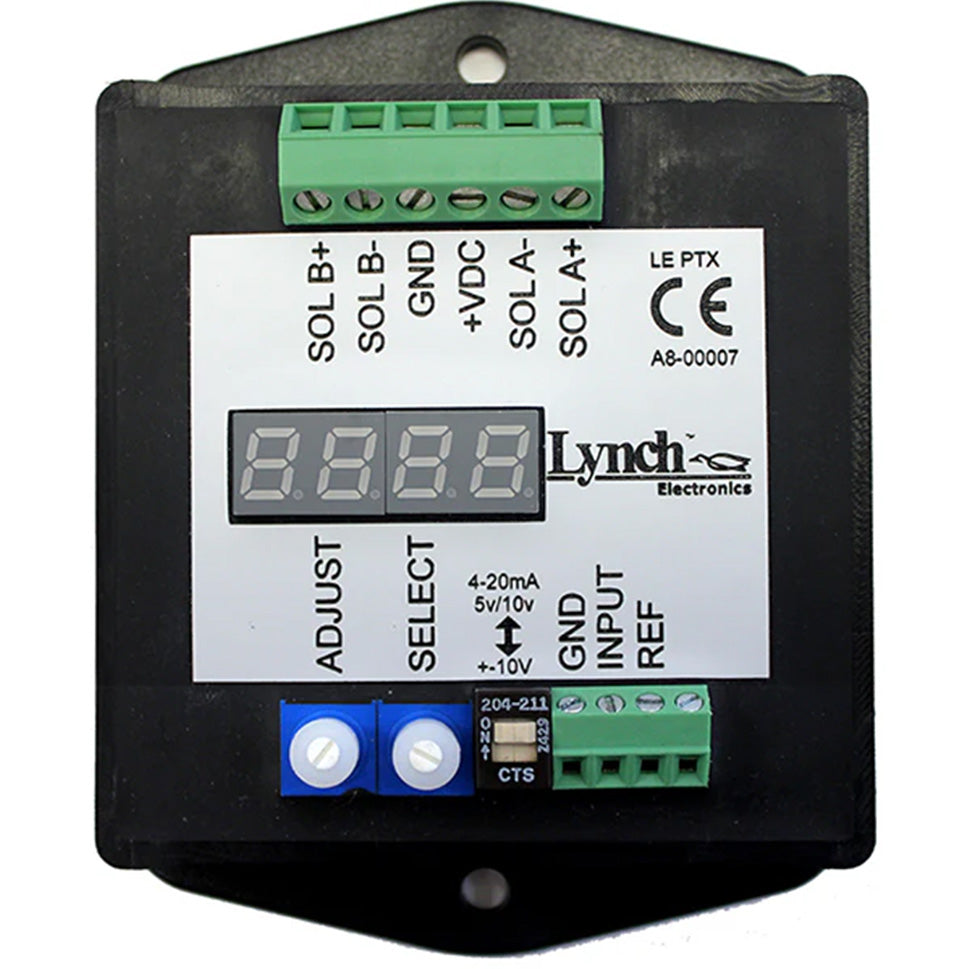

LE PT X

A dual driver with a digital display in a potted enclosure.

The LE PT X supplies a solenoid with current proportional to the input signal from a potentiometer, joystick, PLC, or other control system. These amplifiers allow for a smooth operation for any proportional application and can be used with any proportional valve brand, including; Sun Hydraulics, Parker, Bosch Rexroth, Vickers, Denison, Yuken, Argo-Hytos, etc. The LE PT X is fire and shock-resistant, making it an ideal unit for rugged applications.


FEATURES AND BENEFITS

  • Microcontroller design.
  • Independent adjustments (Incl. ramp up & ramp down).
  • 4-digit extra bright seven-segment LED display.
  • Large, easy-to-use adjustments and readout.
  • Display and adjust actual values (Current & Voltage).
  • Wide range of supply voltage.
  • User-selectable input type through menu setup.
  • Wide ramp time range (0 to 99.5 Sec).
  • Rugged design offers vibration resistance.
  • Direct mounting.
  • Housed in fire-retardant two-part epoxy resin (UL94-VO).
  • Simple control with analog input, locally supplied reference voltage.
  • Energy-efficient PWM circuit/no heat sink required.
  • Electronic limiting circuit/short circuit proof.
  • Reverse polarity, command Input protection.
  • The load can be connected & disconnected live.
  • Current sensing maintains output regardless of changes in supply voltage and coil resistance.
  • Easy troubleshooting/cable length not an issue.

*If purchasing more than 10 units, please contact sales@lynch.ca
     LE PT X STANDARD SPECIFICATIONS

    Operating voltage:
    Maximum output current:
    Input Signal:
    Maximum ramp time:
    PWM/Dither Frequency:
    Linearity:
    Operating Temperature:
    Protection Grade:
    Dimensions:

    		 9 to 36 VDC
    3.00 Amps
    5V, 10V, 4 to 20mA
    99.5 Sec
    40-450Hz
    1%
    -40 to +80 Celsius
    IP65
    78.6 mm x 88.9 mm x 21 mm




    3.46 lb
