LE PM X

Single Sol. Proportional Amplifier with 4 pin M12 connection

$295.00 USD

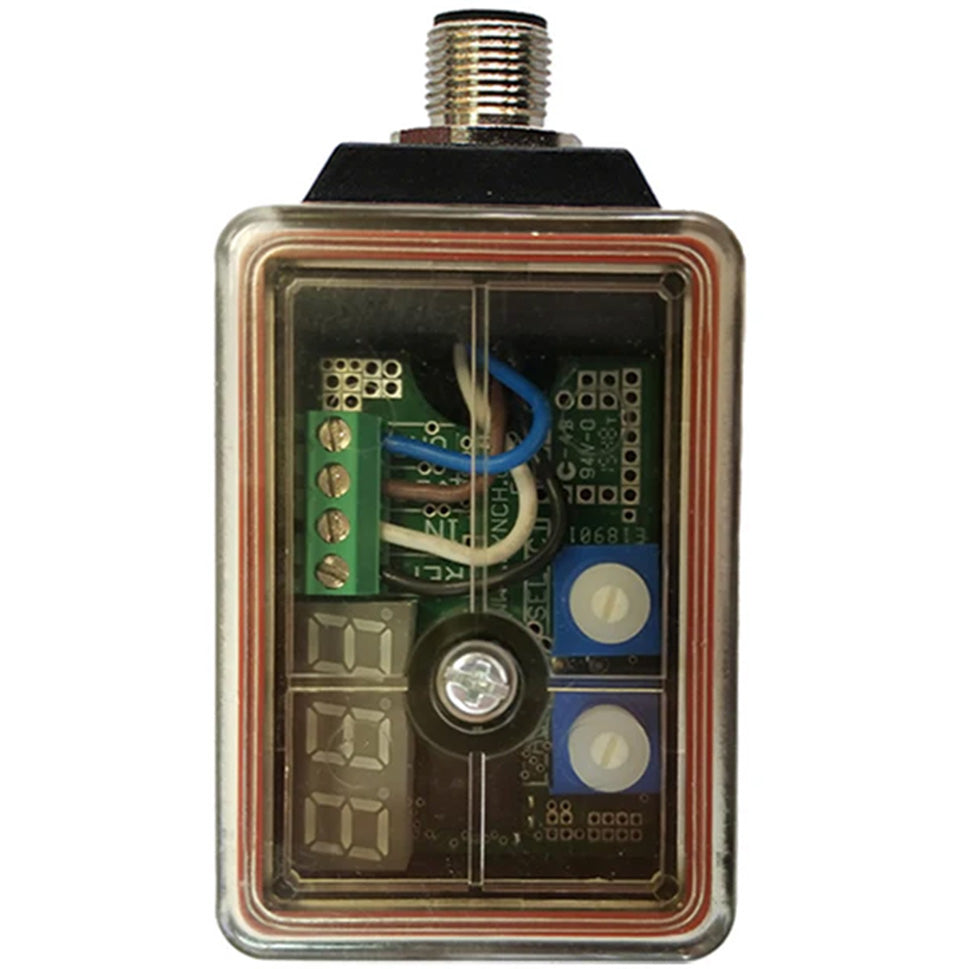

LE PM X

Direct DIN solenoid-mounted driver with a 4-pin M12 connector.


The LE PM X valve driver supplies a solenoid with current proportional to the input signal from a potentiometer, joystick, PLC, or other control system. These amplifiers allow for a smooth operation for any proportional application and can be used with any proportional valve brand, including Sun Hydraulics, Parker, Bosch Rexroth, Vickers, Denison, Yuken, Argo-Hytos, etc.

FEATURES AND BENEFITS
  • Microcontroller design.
  • Independent adjustments (Incl. ramp up & ramp down).
  • 4-digit extra bright seven-segment LED display.
  • Large, easy-to-use adjustments and readout.
  • Display and adjust actual values (Current & Voltage).
  • Wide range of supply voltage.
  • User-selectable input type through menu setup.
  • Wide ramp time range (0 to 99.5 Sec).
  • Simple control with analog input, locally supplied reference voltage.
  • Energy-efficient PWM circuit/no heat sink required.
  • Electronic limiting circuit/short circuit proof.
  • Reverse polarity, command Input protection.
  • The load can be connected & disconnected live.
  • Current sensing maintains output regardless of changes in supply voltage and coil resistance.
  • Easy troubleshooting/cable length not an issue.
  • 4-pin M12 connector.

*If purchasing more than 10 units, please contact sales@lynch.ca

 LE PM X STANDARD SPECIFICATIONS

Operating voltage:
Maximum output current:
Input Signal:
Maximum ramp time:
PWM/Dither Frequency:
Linearity:
Operating Temperature:
Dimensions:

 9 to 36 VDC
3.00 Amps
5V, 10V, 4 to 20mA
99.5 Sec
40-450Hz
1%
-40 to +80 Celsius
91mm x 40mm x 32 mm





0.17 lb
