LE PI X

Single Sol. Proportional Amplifier, NEMA 4X with cable glands

$295.00 USD
LE PI X

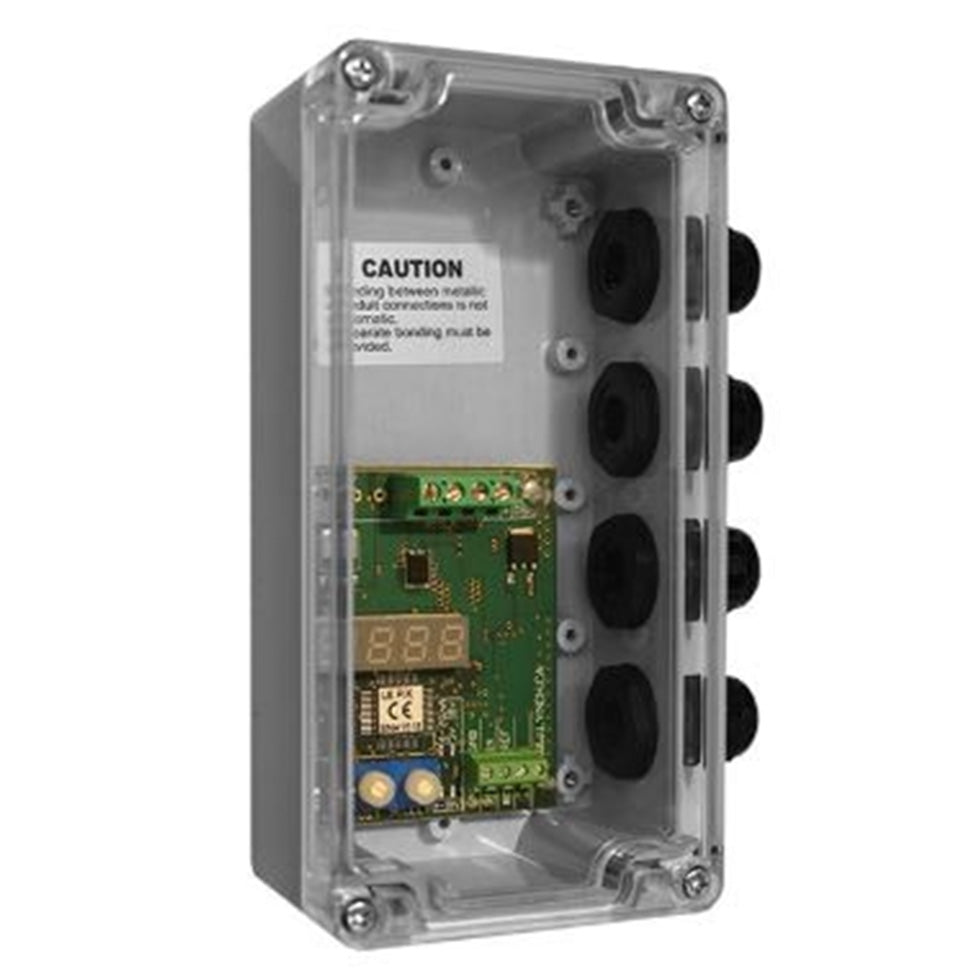

A single proportional valve amplifier enclosed in a NEMA 4X enclosure with a clear lid.

The LE PI X supplies a solenoid with current proportional to the input signal from a potentiometer, joystick, PLC, or other control system. A single solenoid proportional valve driver in a weather-tight NEMA 4X enclosure with mounting holes. The enclosure has a clear lid for viewing driver operation.

FEATURES AND BENEFITS
  • Microcontroller design.
  • Independent adjustments (Incl. ramp up and ramp down).
  • 4-digit extra bright seven-segment LED display.
  • Large, easy-to-use adjustments and readout.
  • Display and adjust actual values (current & voltage).
  • Wide range of supply voltage.
  • User selectable input type through menu setup (ex: 0 to 5V, 0 to 10V, 4 to 20mA).
  • Wide ramp time range (0 to 99.5 sec).
  • Simple control with analog input, locally supplied reference voltage.
  • Energy-efficient PWM circuit, no heat sink required.
  • Electronic limiting circuit/ short circuit proof.
  • Reverse polarity, command input protection.
  • The load can be connected and disconnected live.
  • Easy troubleshooting.


*If purchasing more than 10 units, please contact sales@lynch.ca

 LE PI X STANDARD SPECIFICATIONS

Operating voltage:
Maximum output current:
Input Signal:
Maximum ramp time:
PWM/Dither Frequency:
Linearity:
Operating Temperature:
Protection Grade:
Dimensions:

 9 to 36 VDC
3.00 Amps
5V, 10V, 4 to 20mA
99.5 Sec
40-450Hz
1%
-40 to +80 Celsius
NEMA 4X
160mm x 80mm x 56mm




0.62 lb
