LE PB X

Single Sol. Proportional Amplifier, fire-retardant epoxy resin potting

$295.00 USD

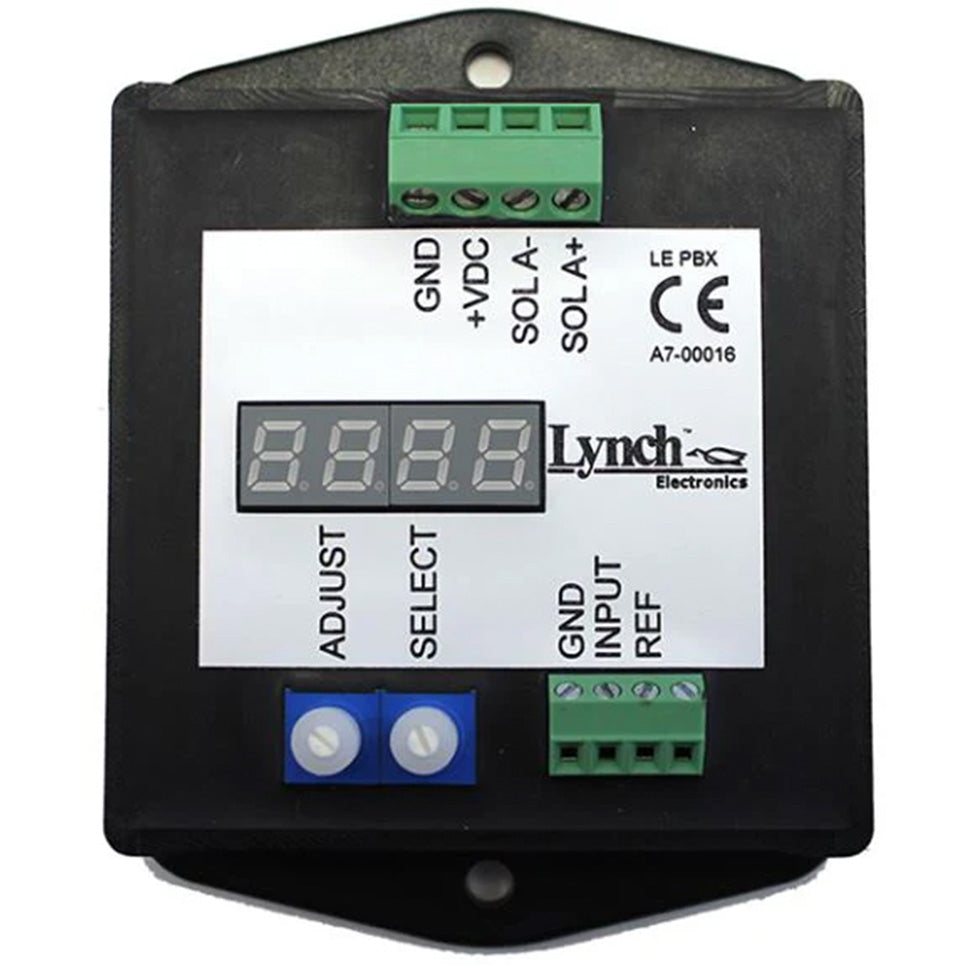

LE PB X

Single proportional valve amplifier encased in a potted enclosure.

The LE PB X supplies a solenoid with current proportional to the input signal from a potentiometer, joystick, PLC or other control system and is encased in an epoxy allowing it to be used in rugged applications.

FEATURES AND BENEFITS
  • Microcontroller design.
  • Independent adjustments (Incl. ramp up & ramp down).
  • 4 digit extra bright seven-segment LED display.
  • Large, easy-to-use adjustments and readout.
  • Display and adjust actual values (Current & Voltage).
  • Wide range of supply voltage.
  • User-selectable input type through menu setup.
  • Wide ramp time range (0 to 99.5 Sec).
  • Rugged design offers vibration resistance.
  • Direct mounting.
  • Housed in fire-retardant two-part epoxy resin (UL94-VO).
  • Simple control with analog input, locally supplied reference voltage.
  • Energy-efficient PWM circuit/no heat sink required.
  • Electronic limiting circuit/short circuit proof.
  • Reverse polarity, command Input protection.
  • Load can be connected & disconnected live.

*If purchasing more than 10 units, please contact sales@lynch.ca
     LE PD X STANDARD SPECIFICATIONS

    Operating voltage:
    Maximum output current:
    Input Signal:
    Maximum ramp time:
    PWM/Dither Frequency:
    Linearity:
    Operating Temperature:
    Protection Grade:
    Dimensions:

    		 9 to 36 VDC
    3.00 Amps
    5V, 10V, 4 to 20mA
    99.5 Sec
    40-450Hz
    1%
    -40 to +80 Celsius
    IP65
    78.6 mm x 88.9 mm x 21 mm




    0.34 lb
