LE PP X

Single Sol. Proportional Amplifier, direct DIN coil mount, DIN43650A plug

$295.00 USD

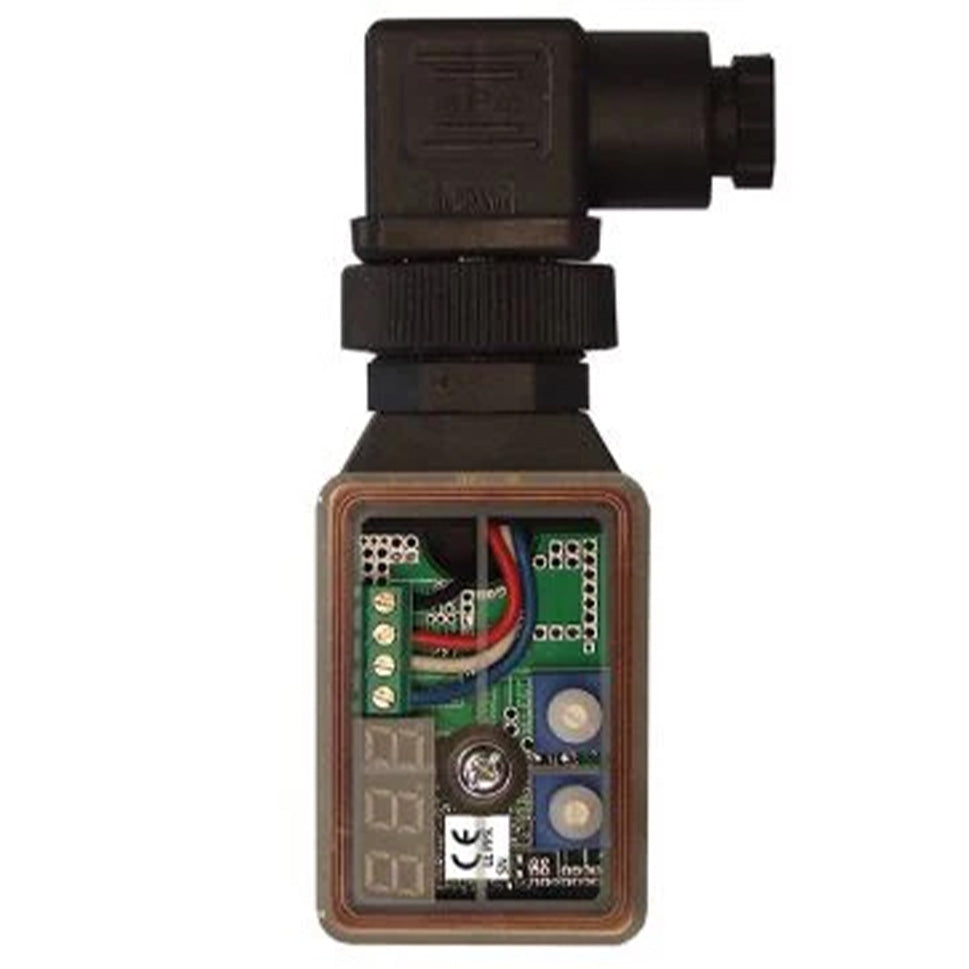

LE PP X

Direct DIN solenoid mount DIN cable connection.

The LE PP X valve driver supplies a solenoid with current proportional to the input signal from a potentiometer, joystick, PLC, or other control system. The single solenoid proportional valve driver with male DIN Form A EN 175301-803 (DIN 43650) plug for wire connections mounts directly on a DIN coil. This model features a convenient DIN plug for DIN Connector or Moulded DIN cables.

FEATURES AND BENEFITS
  • Microcontroller design.
  • Independent adjustments (Incl. ramp up and ramp down).
  • 3-digit extra bright seven-segment LED display.
  • Large, easy-to-use adjustments and readout.
  • Display and adjust actual values (current & voltage).
  • Wide range of supply voltage.
  • User selectable input type through menu setup (ex: 0 to 5V, 0 to 10V, 4 to 20mA).
  • Wide ramp time range (0 to 99.5 sec).
  • Simple control with analog input, locally supplied reference voltage.
  • Energy-efficient PWM circuit, no heat sink required.
  • Electronic limiting circuit/ short circuit proof.
  • Reverse polarity, command input protection.
  • The load can be connected and disconnected live.
  • Easy troubleshooting.


*If purchasing more than 10 units, please contact sales@lynch.ca

 LE PP X STANDARD SPECIFICATIONS

Operating voltage:
Maximum output current:
Input Signal:
Maximum ramp time:
PWM/Dither Frequency:
Linearity:
Operating Temperature:
Protection Grade:
Dimensions:

 9 to 36 VDC
3.00 Amps
5V, 10V, 4 to 20mA
99.5 Sec
40-450Hz
1%
-40 to +75 Celsius
IP65
109mm x 40mm x 52 mm




0.4 lb
